* ROAD /RAILWAY TRANSPORTATION
cheapest, fastest.
*20/40HC CONTAINER
cheapest, fastest.
* RORO WESSEL
Cost higher than container, no disassembly required.
* BULK CARRIER
Cost higher than container, no disassembly required
* FLATBED SHIP
cost higher than container, no disassembly required.
* Others according to requirements
Price : $22000 USD
Min.order : 1Unit
Manufacturer: HITACHI
Year: 2019
Hours: 989
Bucket capacity: 1.0m³
Shipping : Sea freight/Land freight

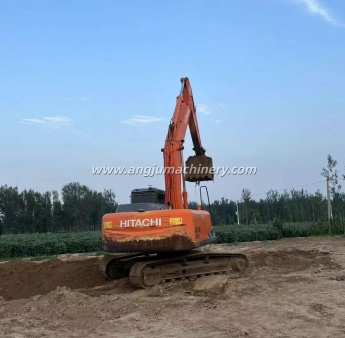

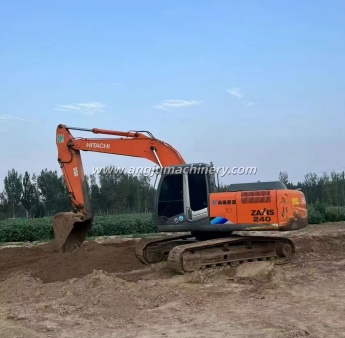

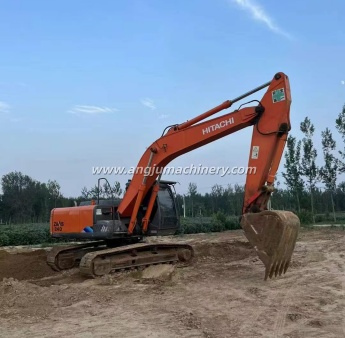

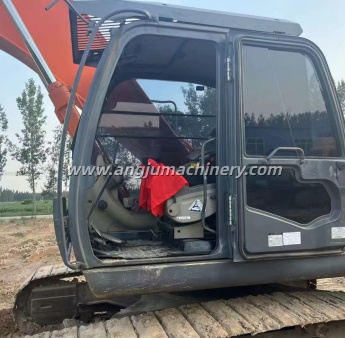

Hitachi ZX240-3 excavator has the advantages of powerful working capacity, stable operating performance, comfortable cab design, low noise and vibration, and easy maintenance, and is suitable for various excavation working environments. Used excavators are more cost-effective.
Specifications
Tonnage (tons) 24
Working weight of the whole machine (kg) 23800
Bucket capacity (m³) 1.0
Boom length (mm) 6
Arm length (mm) 2.96
Power system

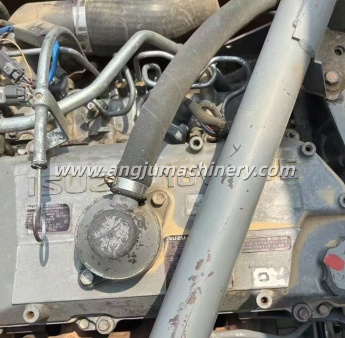

Engine model ISUZU AH-4HK1X
Rated power (kw/rpm) 132/2000
Cooling method Water cooling
Cylinder bore × stroke (mm) 115 × 125
Number of cylinders (pieces) 4
Displacement (L) 5.193
Working mode Direct injection, turbocharged, with intercooler
Performance
Ground pressure (Kpa) 52
Slewing speed (rpm) 13.5
Gradability (%) 70/35°
Bucket digging force (kN) 180
Arm digging force (kN) 125
Travel speed (km/h) 3.4/5.5

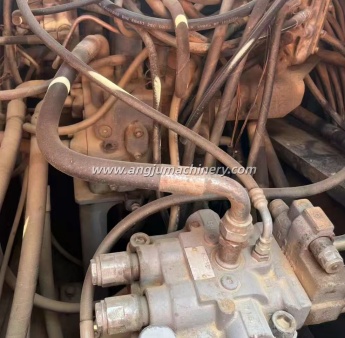

Hydraulic system
Main overflow setting pressure (Mpa) 34.3
Swing hydraulic motor type Axial piston motor × 1 Travel hydraulic motor type Variable axial piston motor × 2 Main pump maximum flow (I/min) 2 × 224
Travel hydraulic circuit (Mpa) 34.3
Swing hydraulic circuit (Mpa) 32.4
Is the hydraulic fracturing pipeline standard? No

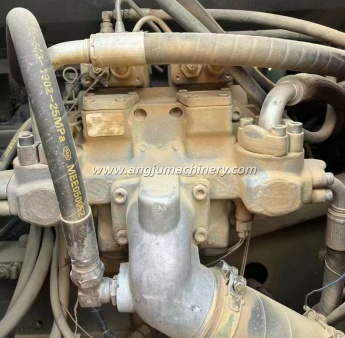

Main pump type Variable piston pump × 2 + gear pump × 1 Working hydraulic oil circuit (Mpa) 34.3
