* ROAD /RAILWAY TRANSPORTATION
cheapest, fastest.
*20/40HC CONTAINER
cheapest, fastest.
* RORO WESSEL
Cost higher than container, no disassembly required.
* BULK CARRIER
Cost higher than container, no disassembly required
* FLATBED SHIP
cost higher than container, no disassembly required.
* Others according to requirements
Price : $58800 USD
Min.order : 1Unit
Manufacturer: Doosan
Year: 2022
Hours: 983
Bucket capacity: 3.2m³
Shipping : Sea freight/Land freight

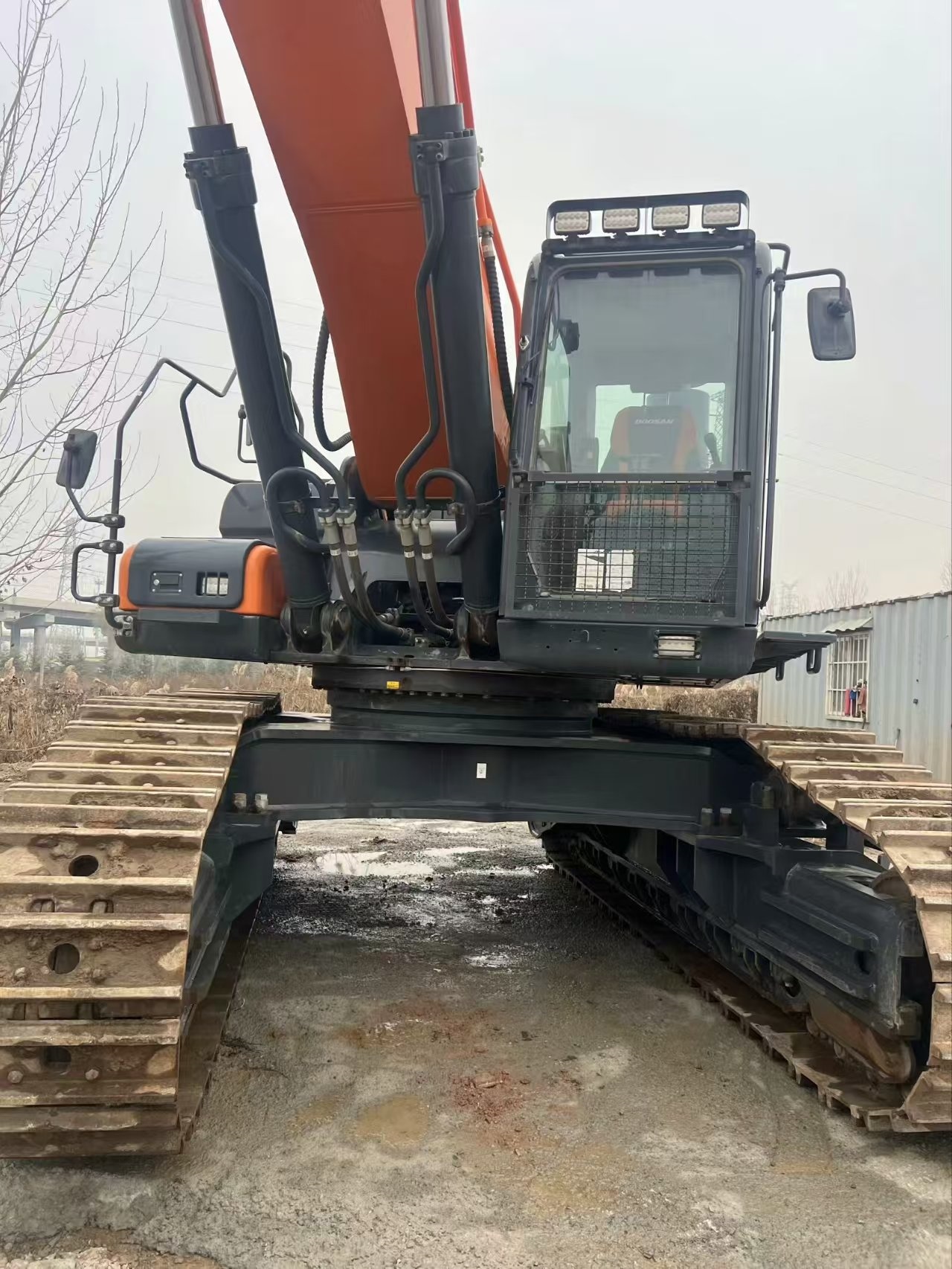

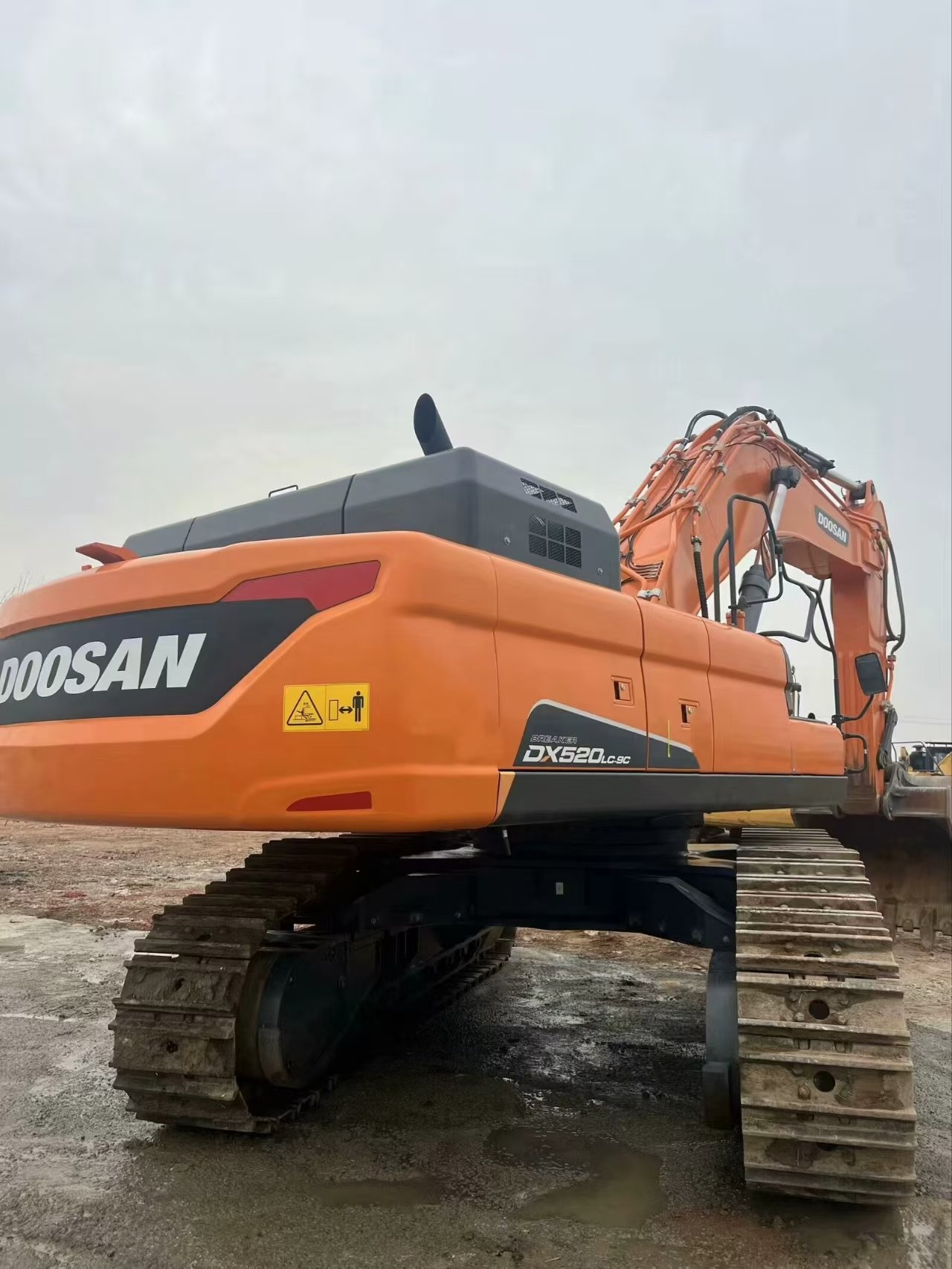

The Doosan DX520 excavator is an excellent excavator with its powerful power system, efficient hydraulic system, optimized structural design, advanced operating platform and high safety performance. Used excavators are more cost-effective.
Tonnage (tons) 52
Machine operating weight (kg) 50800
Bucket capacity (m³) 2.72-3.2
Power system

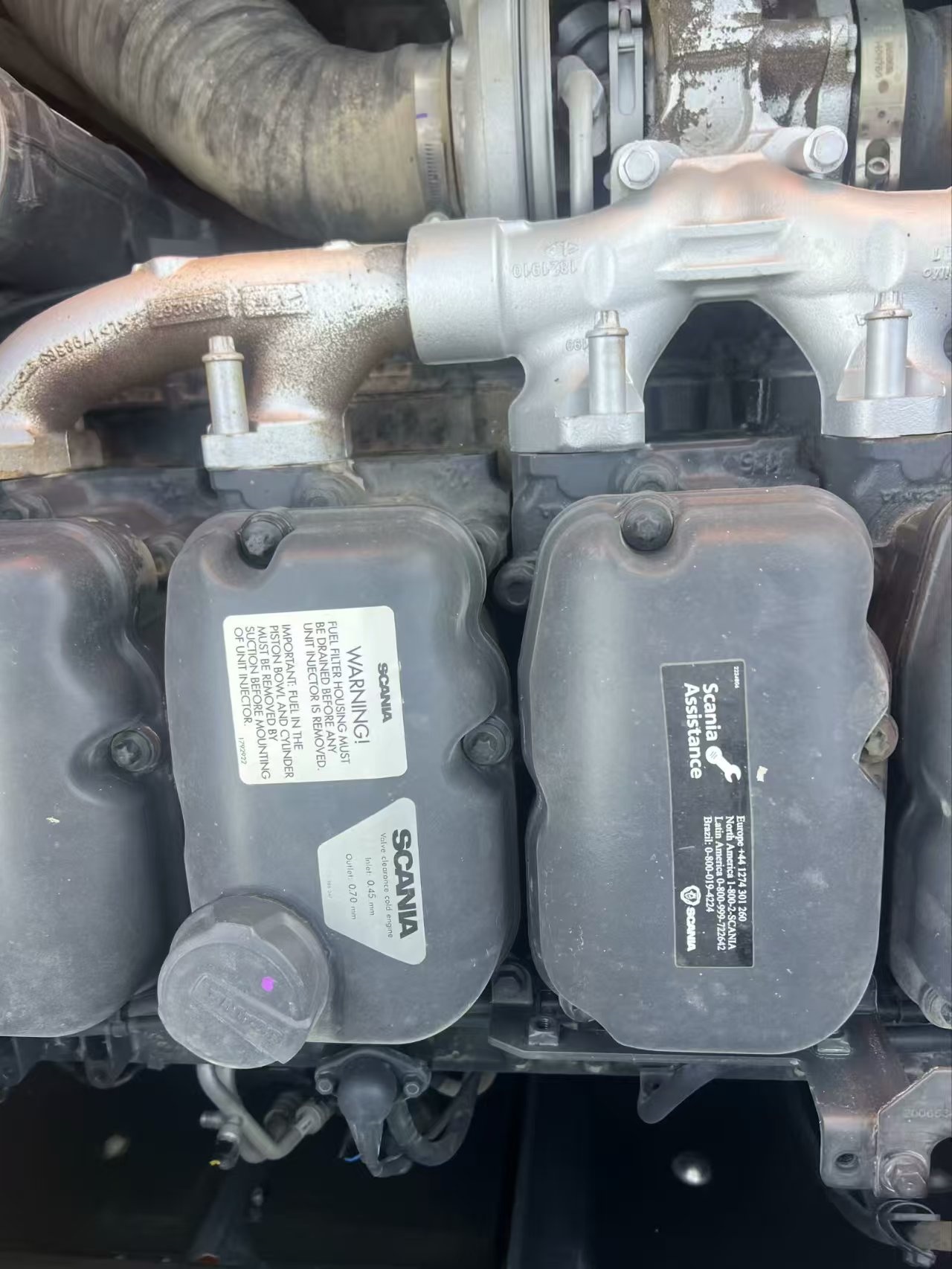

Engine model DC13
Rated power (kw/rpm) 257/1800
Cylinder diameter × stroke (mm) 130 × 160
Number of cylinders (pieces) 6
Performance
Slewing speed (rpm) 8.3
Bucket digging force (KN) 266.6/282.2
Arm digging force (KN) 233.2/247.0
Travel speed (km/h) 5.3/3.1
Slewing torque (Nm) 16304
Hydraulic system
Main pump maximum flow (I/min) 2 × 355
Travel hydraulic circuit (Mpa) 33
Slewing hydraulic circuit (Mpa) 30
Control hydraulic circuit (Mpa) 35
Main pump type
Variable axial piston pump
Working hydraulic oil circuit (Mpa) 33
Bucket cylinder -Number × Cylinder Diameter × Stroke (mm) 1-170 × 115 × 1341
Arm Cylinder -Number × Cylinder Diameter × Stroke (mm) 1-190 × 130 × 1980
Boom Cylinder -Number × Cylinder Diameter × Stroke (mm) 2-170 × 115 × 1650
Oil Capacity
Fuel Tank (L) 626
Hydraulic Tank (L) 390
Engine Oil Replacement Volume (L) 45
Coolant (L) 51
