* ROAD /RAILWAY TRANSPORTATION
cheapest, fastest.
*20/40HC CONTAINER
cheapest, fastest.
* RORO WESSEL
Cost higher than container, no disassembly required.
* BULK CARRIER
Cost higher than container, no disassembly required
* FLATBED SHIP
cost higher than container, no disassembly required.
* Others according to requirements
Price : $248500USD
Min.order : 1Unit
Manufacturer: Caterpillar
Year: 2023
Hours: 637
Bucket capacity: 3.2m³
Shipping : Sea freight/Land freight
Using advanced hydraulic system and electronic control technology, CAT® 350 has higher excavation efficiency and lifting speed, and can complete more excavation tasks in a shorter time. The used excavators we provide are more cost-effective but 99%new condition.
Specifications
Tonnage (tons) 50
Working weight of the whole machine (kg) 48100

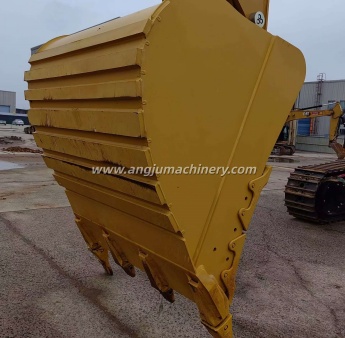

Bucket capacity (m³) 3.2
Boom length (mm) 6550
Arm length (mm) 3000
Performance
Swing speed (rpm) 8.44
Swing torque (Nm) 187k
Bucket digging force (kN) 291
Arm digging force (kN) 211
Power system

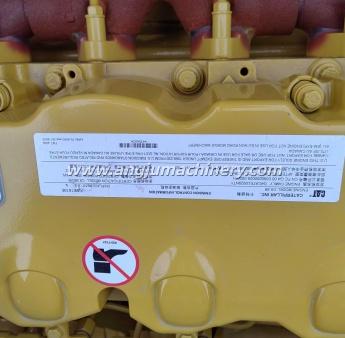

Engine model C9.3B
Rated power (kw/rpm) 309/1800
Displacement (L) 9.3
Cylinder diameter × stroke (mm) 115*149

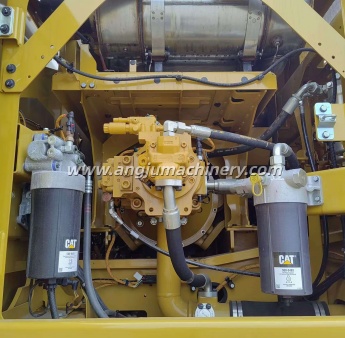

Hydraulic system
Main pump maximum flow (I/min) 779
Working hydraulic oil circuit (Mpa) 35
Travel hydraulic circuit (Mpa) 35
Swing hydraulic circuit (Mpa) 25.7 Oil capacity

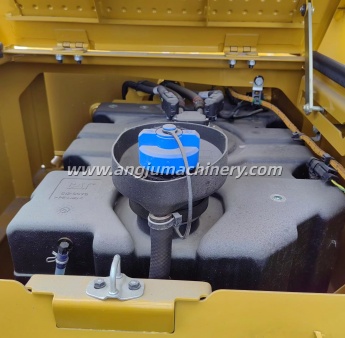

Fuel tank (L) 680
Hydraulic oil tank (L) 217
Hydraulic system (L) 550
Engine oil change volume (L) 32
Coolant (L) 48
Main transport dimensions
Total length for transport (mm) 11630
Total width for transport (mm) 3350
Total height for transport (mm) 3260

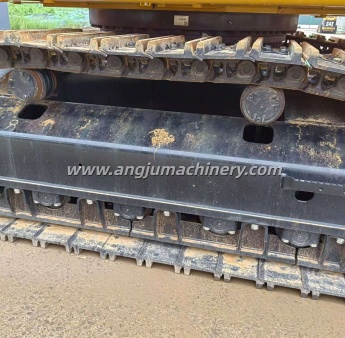

Total length of crawler tracks (mm) 5400
Shoe width (mm) 600
Track gauge (mm) 2740
Counterweight ground clearance (mm) 1340
Minimum ground clearance (mm) 520
