* ROAD /RAILWAY TRANSPORTATION
cheapest, fastest.
*20/40HC CONTAINER
cheapest, fastest.
* RORO WESSEL
Cost higher than container, no disassembly required.
* BULK CARRIER
Cost higher than container, no disassembly required
* FLATBED SHIP
cost higher than container, no disassembly required.
* Others according to requirements
Price $80000 USD for 1-5 items :
Min.order : 1Unit
Manufacturer: Caterpillar
Year: 2025 – 2024
Hours: 286- 529
Bucket capacity: 0.93m³
Shipping : Sea freight/Land freigh

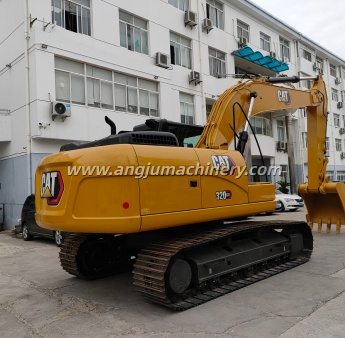

Those Excavators are 99%new CAT320GX ,delivers power and performance in a compact size to help you work in the tightest applications. Its ability to fit through a narrow doorway makes it an excellent machine for indoor demolition work. The second hand one nearly new excavators we provide are more cost-effective.
Tonnage (tons) 20
Machine operating weight (kg) 19800
Bucket capacity (m³) 0.93
Boom length (mm) 5700
Arm length (mm) 2700
Performance
Swing speed (rpm) 11.07
Swing torque (Nm) 74k
Bucket digging force (KN) 136
Arm digging force (KN) 106
Power system

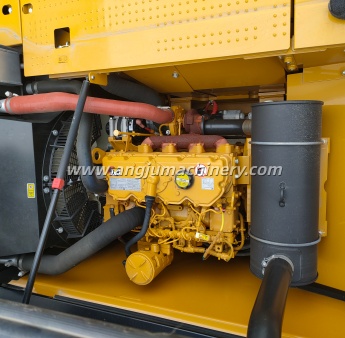

Engine model Cat® C4.4
Rated power (kw/rpm) 110/2000
Displacement (L) 4.4
Cylinder bore × stroke (mm) 105 × 127
Emission standard National IV
Hydraulic system
Main pump maximum flow (I/min) 429
Working hydraulic oil circuit (Mpa) 35
Travel hydraulic circuit (Mpa) 35
Swing hydraulic circuit (Mpa) 25
Boom cylinder – number × cylinder bore × stroke (mm) 2120 × 1260
Arm cylinder – number × cylinder diameter × stroke (mm) 1135 × 1504
Bucket cylinder – number × cylinder diameter × stroke (mm) 1115 × 1104
Oil capacity
Fuel tank (L) 390
Hydraulic oil tank (L) 115
Hydraulic system (L) 218
Engine oil change volume (L) 15
Coolant (L) 24.5
Main transport dimensions
Total transport length (mm) 9570
Total transport width (mm) 2800
