Price: $70000 USD for 1-5 items
Min.order : 1Unit
Manufacturer: Caterpillar
Year: 2023-2020
Hours: 649-1354
Bucket capacity: 0.93m³
Shipping : Sea freight/Land freight

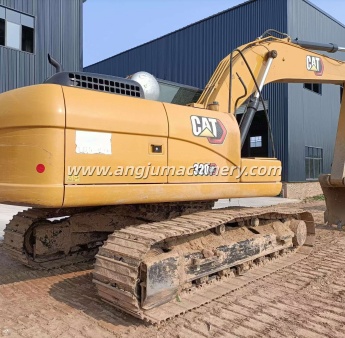

Excavator CAT320GX large quantity in stock , delivers power and performance in a compact size to help you work in the tightest applications.
The used excavators are in good contition ,we provide are more cost-effective.
Tonnage (tons) 20
Machine operating weight (kg) 19800

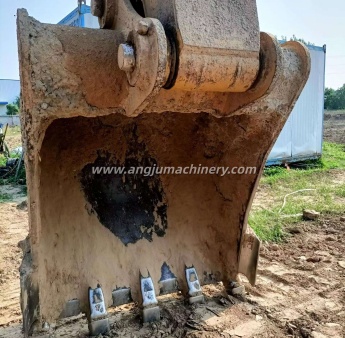

Bucket capacity (m³) 0.93
Boom length (mm) 5700
Arm length (mm) 2700
Performance
Swing speed (rpm) 11.07
Swing torque (Nm) 74k
Bucket digging force (KN) 136
Arm digging force (KN) 106

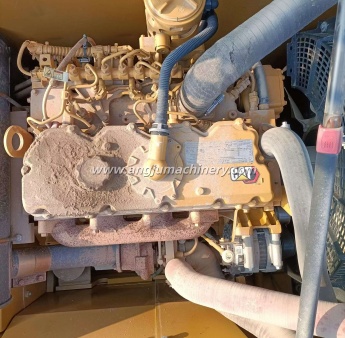

Power system
Engine model Cat® C4.4
Rated power (kw/rpm) 110/2000
Displacement (L) 4.4
Cylinder bore × stroke (mm) 105 × 127
Emission standard National IV

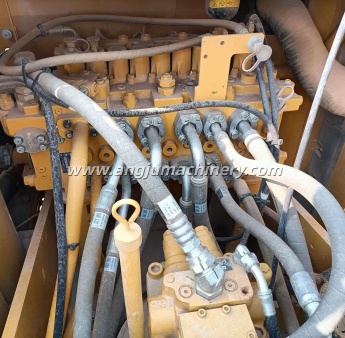

Hydraulic system
Main pump maximum flow (I/min) 429
Working hydraulic oil circuit (Mpa) 35
Travel hydraulic circuit (Mpa) 35
Swing hydraulic circuit (Mpa) 25
Boom cylinder – number × cylinder bore × stroke (mm) 2120 × 1260
Arm cylinder – number × cylinder diameter × stroke (mm) 1135 × 1504
Bucket cylinder – number × cylinder diameter × stroke (mm) 1115 × 1104
Oil capacity
Fuel tank (L) 390
Hydraulic oil tank (L) 115
Hydraulic system (L) 218
Engine oil change volume (L) 15
Coolant (L) 24.5
Main transport dimensions
Total transport length (mm) 9570
Total transport width (mm) 2800
