* ROAD /RAILWAY TRANSPORTATION
cheapest, fastest.
*20/40HC CONTAINER
cheapest, fastest.
* RORO WESSEL
Cost higher than container, no disassembly required.
* BULK CARRIER
Cost higher than container, no disassembly required
* FLATBED SHIP
cost higher than container, no disassembly required.
* Others according to requirements
Price : $14880 USD
Min.order : 1Unit
Manufacturer: Caterpillar
Year: 2025
Hours: 38
Bucket capacity: 0.044m³
Shipping : Sea freight/Land freight

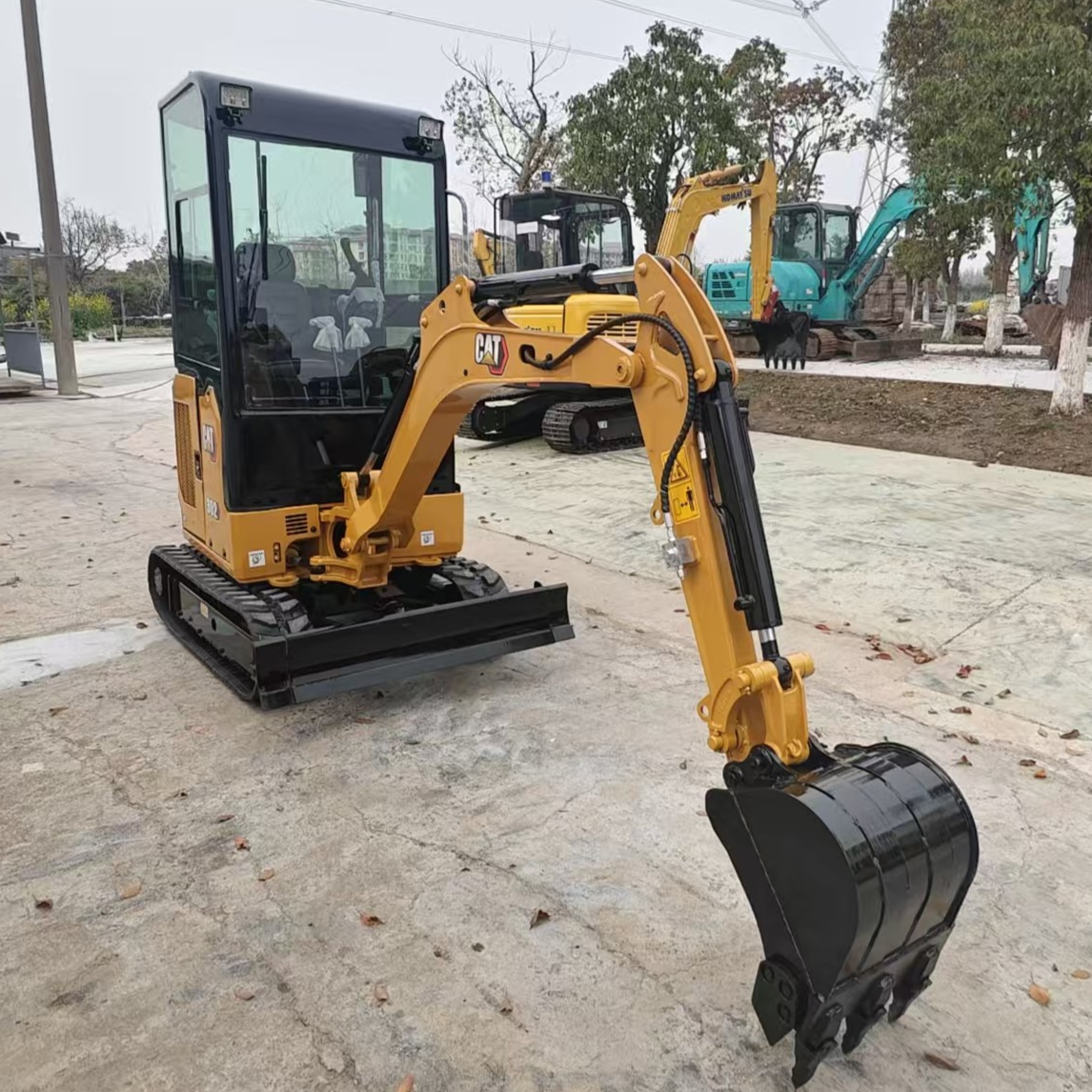

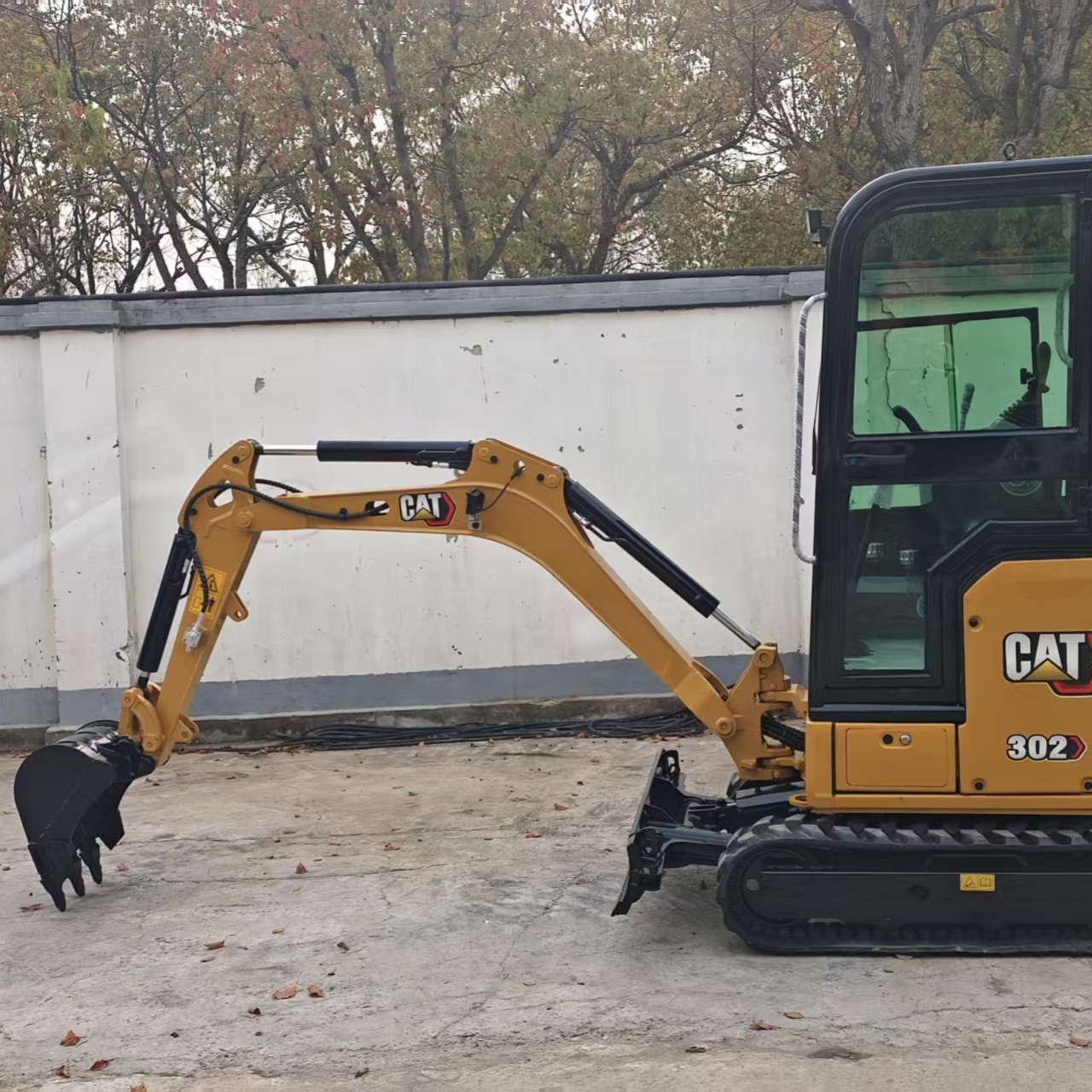

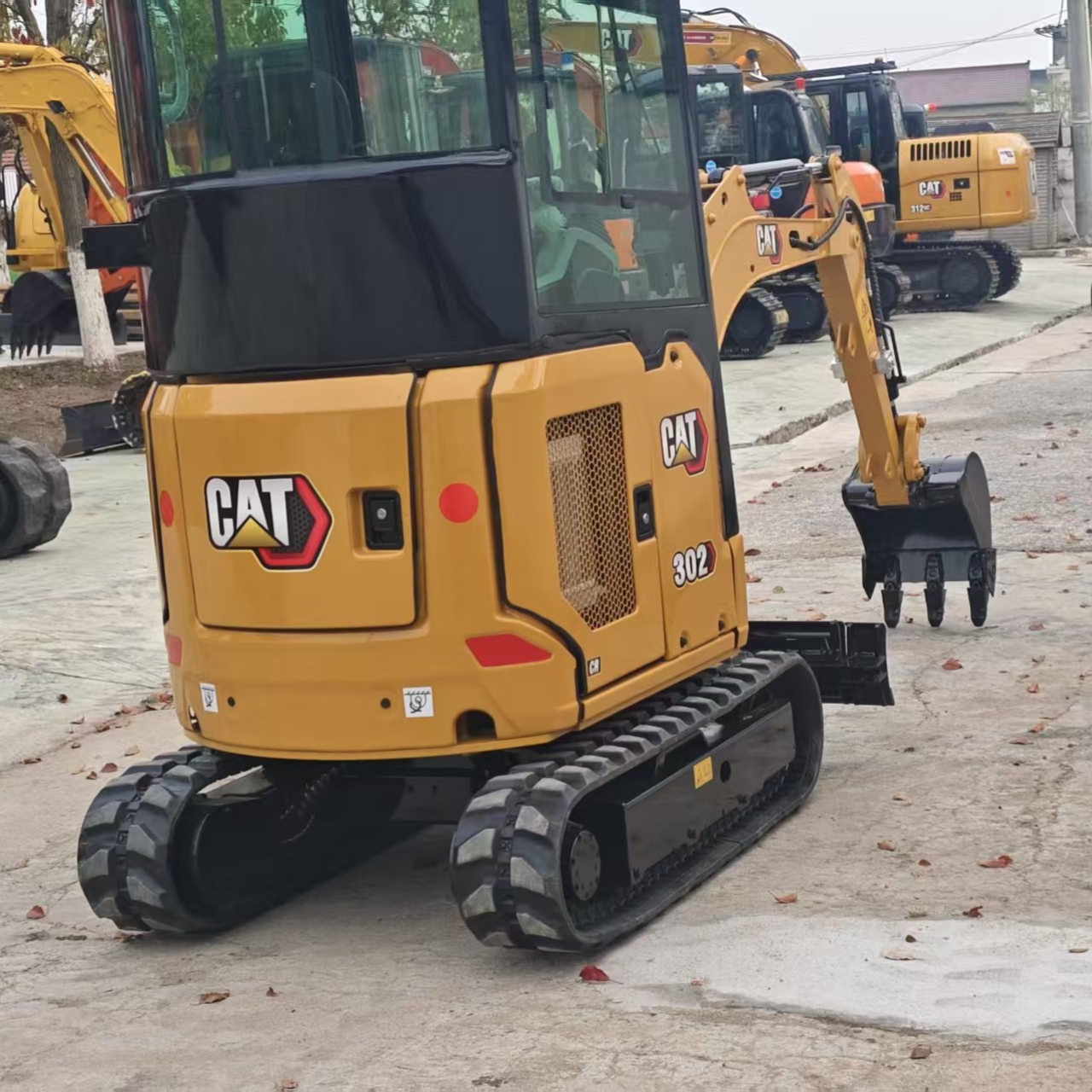

The mini excavator adopts a compact design with a small wheel spacing and turning radius, which can flexibly enter tight spaces and better adapt to various working environments. The used excavators we provide are more cost-effective.
Tonnage (tons) 2
Machine operating weight (kg) 2042-2205
Bucket capacity (m³) UD 0.044
Boom length (mm) 1660
Arm length (mm) 960
Performance:
Slewing speed (rpm) 9.8
Travel speed (km/h) 4.4/2.9
Gradability (%) 30
Bucket digging force (kN) 19.6
Arm digging force (KN) 11.3
Maximum traction force (KN) 13.2/20
Power system:
Engine model Cat® C1.1
Rated power (kw/rpm) 16.1/2400
Displacement (L) 1.1
Bore × stroke (mm) 77×81
Hydraulic system:
Maximum flow of main pump (I/min) 66
Working hydraulic oil circuit (Mpa) 24.5
Travel hydraulic circuit (Mpa) 24.5
Swing hydraulic circuit (Mpa) 14.7
Oil capacity:
Fuel tank (L) 26
Hydraulic oil tank (L) 18
Hydraulic system (L) 26
Engine oil change volume (L) 4.4
Coolant (L) 3.9
Main transport dimensions:
Total length for transport (mm) 3900
Total height for transport (mm) 2300
Shoe width (mm) 250
Total track width (mm) 1090
Minimum ground clearance (mm) 150
Rear end swing radius (mm) 750
Operating range:
Maximum digging depth (mm) 2370
