Key Technical Specifications Overview:
Power System

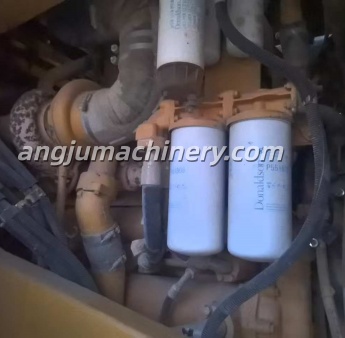

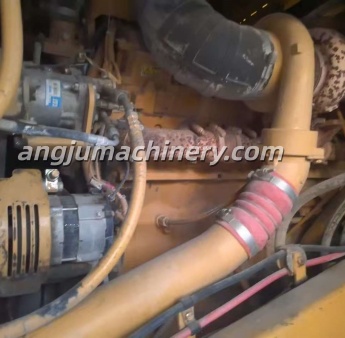

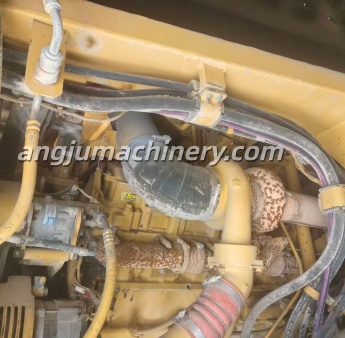

Cat® 3412E air-to-air aftercooled diesel engine (12-cylinder)
Rated Power
537 kW (720 hp)
Rated Net Power
530 kW
Rated Speed
2000 rpm
Rated Payload
55.5 tonnes (or 56 metric tonnes)
Maximum Speed
62.2 km/h
Empty Vehicle Weight
Approx. 43.8 tonnes
Gross Operating Weight
Approx. 99.3 tonnes
Body Capacity (2:1 heap)
35.2 m³ or 35.75 m³
Body Raise/Lower Time
Raise: approx. 9.5 seconds / Lower: approx. 12.5 seconds
Tire Size:24.00-R35 (E4)

Dimensions
• Overall length: Approx. 9,120 mm
• Overall width: Approx. 3,910 mm (machine body width)
• Height to top of ROPS: Approx. 4,000 mm

Powertrain and Drivetrain Performance:
• High-displacement, low-speed engine: The 27L engine delivers a robust peak torque of 3,436 N⋅m and features 33% torque rise, reducing gear shifting and enabling faster work cycles in demanding operating conditions.
• Automatic transmission: Equipped with a Cat powershift transmission (7 forward and 1 reverse speeds) and an Electronic Clutch Pressure Control (ECPC) system for smooth shifting.
• Braking system: Features oil-cooled, multi-disc rear brakes and caliper-disc front brakes, with an integrated Automatic Retarder Control (ARC) system to ensure safety during heavy-load downhill operations.
